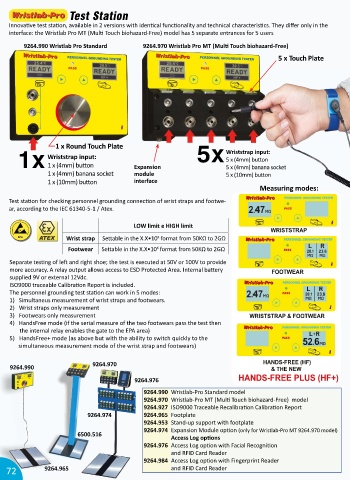

Page 72 - ITECO Catalogue 2024

Test Station

Innova ve test sta on, available in 2 versions with iden cal func onality and technical characteris cs. They differ only in the

interface: the Wristlab Pro MT (Mul Touch biohazard-Free) model has 5 separate entrances for 5 users

9264.990 Wristlab Pro Standard 9264.970 Wristlab Pro MT (Mul Touch biohazard-Free)
5 x Touch Plate

1 x Round Touch Plate
Wriststrap input:
Wriststrap input: 5x 5 x (4mm) bu on
1x 1 x (4mm) bu on Expansion 5 x (4mm) banana socket
1 x (4mm) banana socket module 5 x (10mm) bu on
1 x (10mm) bu on interface
Measuring modes:

Test sta on for checking personnel grounding connec on of wrist straps and footwe-

ar, according to the IEC 61340-5-1 / Atex.
LOW limit e HIGH limit

X
Wrist strap Settable in the X.X•10 format from 50KΩ to 2GΩ
Footwear Settable in the X.X•10 format from 50KΩ to 2GΩ
X

Separate tes ng of le and right shoe; the test is executed at 50V or 100V to provide

more accuracy. A relay output allows access to ESD Protected Area. Internal ba ery
supplied 9V or external 12Vdc.
ISO9000 traceable Calibra on Report is included.

The personnel grounding test sta on can work in 5 modes:

1) Simultaneus measurement of wrist straps and footwears.
2) Wrist straps only measurement
3) Footwears only measurement
4) HandsFree mode (if the serial measure of the two footwears pass the test then
the internal relay enables the gate to the EPA area)
5) HandsFree+ mode (as above but with the ability to switch quickly to the
simultaneous measurement mode of the wrist strap and footwears)

9264.970
9264.990

9264.976
9264.990 Wristlab-Pro Standard model
9264.970 Wristlab-Pro MT (Mul Touch biohazard-Free) model
9264.927 ISO9000 Traceable Recalibra on Calibra on Report
9264.974 9264.965 Footplate
9264.953 Stand-up support with footplate
9264.974 Expansion Module op on (only for Wristlab-Pro MT 9264.970 model)
6500.516

Access Log op ons

9264.976 Access Log op on with Facial Recogni on

and RFID Card Reader
9264.984 Access Log op on with Fingerprint Reader

72 9264.965 and RFID Card Reader
