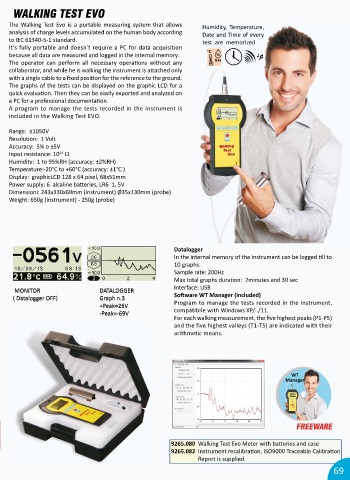

WALKING TEST EVO

The Walking Test Evo is a portable measuring system that allows Humidity, Temperature,
analysis of charge levels accumulated on the human body according Date and Time of every
to IEC 61340-5-1 standard. test are memorized
It's fully portable and doesn't require a PC for data acquisition
because all data are measured and logged in the internal memory.

The operator can perform all necessary opera ons without any
collaborator, and while he is walking the instrument is a ached only

with a single cable to a fixed posi on for the reference to the ground.
The graphs of the tests can be displayed on the graphic LCD for a

quick evalua on. Then they can be easily exported and analyzed on
a PC for a professional documenta on.

A program to manage the tests recorded in the instrument is
included in the Walking Test EVO.
Range: ±1050V
Resolu on: 1 Volt

Accuracy: 5% o ±5V
14
Input resistance: 10 Ω
Humidity: 1 to 95%RH (accuracy: ±2%RH)
Temperature:-20°C to +60°C (accuracy: ±1°C )
Display: graphicLCD 128 x 64 pixel, 68x51mm

Power supply: 6 alcaline ba eries, LR6 1, 5V
Dimensioni: 243x130x60mm (instrument) Ø35x130mm (probe)
Weight: 650g (instrument) - 250g (probe)

Datalogger
In the internal memory of the instrument can be logged ll to

10 graphs.
Sample rate: 200Hz
Max total graphs dura on: 2minutes and 30 sec

Interface: USB
MONITOR DATALOGGER
MONITOR
DATALOGGER

( Datalogger OFF)
( Datalogger OFF) Graph n.3 So ware WT Manager (included)
Graph n.3
+Peak=26V Program to manage the tests recorded in the instrument,
+Peak=26V
-Peak=-69V compatibile with Windows XP/../11.
-Peak=-69V
For each walking measurement, the five highest peaks (P1-P5)

and the five highest valleys (T1-T5) are indicated with their
arithmetic means.
WT
Manager

FREEWARE

9265.080 Walking Test Evo Meter with ba eries and case
9265.082 Instrument recalibra on, ISO9000 Traceable Calibra on
Report is supplied
