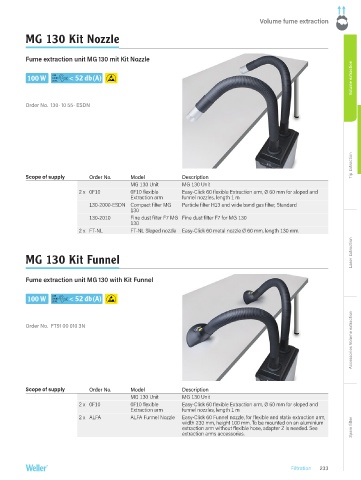

Page 233 - weller

Volume fume extraction

MG 130 Kit Nozzle

Fume extraction unit MG 130 mit Kit Nozzle
Volume extraction

100 W LOW < 52 db (A)
SOUND
LEVEL

Order No. 130- 10 55- ESDN

Tip Extraction

Scope of supply Order No. Model Description
MG 130 Unit MG 130 Unit
2 x 0F10 0F10 flexible Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and
Extraction arm funnel nozzles, length 1 m
130-2000-ESDN Compact filter MG Particle filter H13 and wide band gas filter, Standard
130
130-2010 Fine dust filter F7 MG Fine dust filter F7 for MG 130
130
2 x FT-NL FT-NL Sloped nozzle Easy-Click 60 metal nozzle Ø 60 mm, length 130 mm.
Laser Extraction

MG 130 Kit Funnel

Fume extraction unit MG 130 with Kit Funnel

100 W LOW < 52 db (A)
SOUND
LEVEL
Accessories Volume extraction
Order No. FT91 00 010 3N

Scope of supply Order No. Model Description
MG 130 Unit MG 130 Unit
2 x 0F10 0F10 flexible Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and
Extraction arm funnel nozzles, length 1 m
2 x ALFA ALFA Funnel Nozzle Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm,
width 230 mm, height 100 mm. To be mounted on an aluminium
extraction arm without flexible hose, adapter Z is needed. See Spare filter
extraction arms accessories.

Filtration 233
