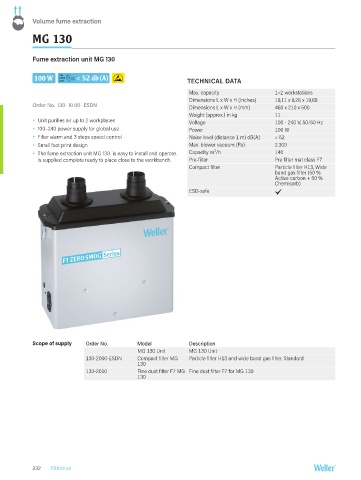

P. 232

Volume fume extraction

            MG 130



            Fume extraction unit MG 130


            100 W    LOW   < 52 db (A)                         TECHNICAL DATA
                     SOUND
                     LEVEL
                                                               Max. capacity                1–2 workstations
                                                               Dimensions L x W x H (Inches)  18,11 x 8,26 x 19,68
            Order No.  130- 10 00- ESDN                        Dimensions L x W x H (mm)    460 x 210 x 500
                                                               Weight (approx.) in kg       11
               Ÿ Unit purifies air up to 2 workplaces          Voltage                      100 - 240 V, 50/60 Hz
               Ÿ 100–240 power supply for global use           Power                        100 W
               Ÿ Filter alarm and 3 steps speed control        Noise level (distance 1 m) dB(A)  < 52
               Ÿ Small foot print design                       Max. blower vacuum (Pa)      2.300
               Ÿ The fume extraction unit MG 130  is easy to install and operate.   Capacity m³/h  140
             Is supplied complete ready to place close to the workbench.  Pre-filter        Pre filter mat class F7
                                                               Compact filter               Particle filter H13, Wide
                                                                                            band gas filter (50 %
                                                                                            Active carbon + 50 %
                                                                                            Chemisorb)
                                                               ESD-safe                     .






























            Scope of supply  Order No.        Model            Description
                                              MG 130 Unit      MG 130 Unit
                             130-2000-ESDN    Compact filter MG   Particle filter H13 and wide band gas filter, Standard
                                              130
                             130-2010         Fine dust filter F7 MG  Fine dust filter F7 for MG 130
                                              130

















            232   Filtration
