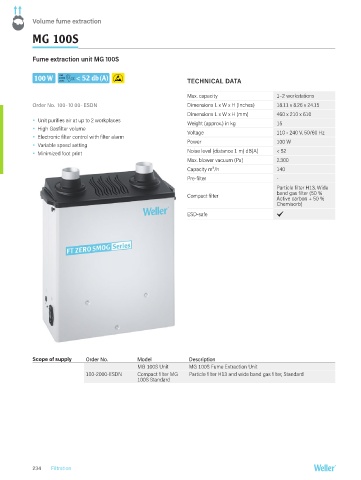

Volume fume extraction
MG 100S
Fume extraction unit MG 100S
100 W LOW < 52 db (A) TECHNICAL DATA
SOUND
LEVEL
Max. capacity 1–2 workstations
Order No. 100- 10 00- ESDN Dimensions L x W x H (Inches) 18.11 x 8.26 x 24.15
Dimensions L x W x H (mm) 460 x 210 x 610
Unit purifies air at up to 2 workplaces Weight (approx.) in kg 15
High Gasfilter volume Voltage 110 - 240 V, 50/60 Hz
Electronic filter control with filter alarm
Variable speed setting Power 100 W
Minimized foot print Noise level (distance 1 m) dB(A) < 52
Max. blower vacuum (Pa) 2.300
Capacity m³/h 140
Pre-filter -
Particle filter H13, Wide
Compact filter band gas filter (50 %
Active carbon + 50 %
Chemisorb)
ESD-safe .
Scope of supply Order No. Model Description
MG 100S Unit MG 100S Fume Extraction Unit
100-2000-ESDN Compact filter MG Particle filter H13 and wide band gas filter, Standard
100S Standard
