Volume fume extraction

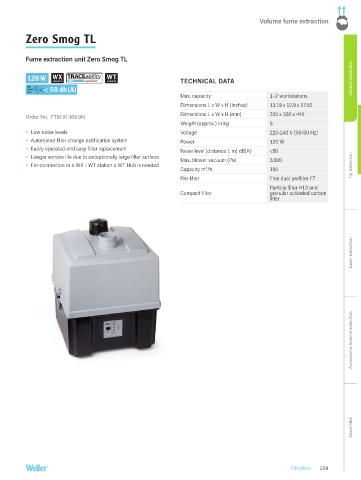

          Zero Smog TL



          Fume extraction unit Zero Smog TL


          120 W                                              TECHNICAL DATA                                          Volume extraction

          LOW
          SOUND   < 50 db (A)
          LEVEL
                                                             Max. capacity                1–2 workstations
                                                             Dimensions L x W x H (Inches)  13.19 x 12.9 x 17.52
          Order No.  FT91 01 369 9N                          Dimensions L x W x H (mm)    335 x 330 x 445
                                                             Weight (approx.) in kg       9
            Ÿ Low noise levels                               Voltage                      220-240 V (50/60 Hz)
            Ÿ Automated filter change notification system    Power                        120 W
            Ÿ Easily operated and easy filter replacement    Noise level (distance 1 m) dB(A)  <50
            Ÿ Longer service life due to exceptionally large filter surface  Max. blower vacuum (Pa)  3.000
            Ÿ For connection to a WX / WT station a WT Hub is needed                                                 Tip Extraction
                                                             Capacity m³/h                190
                                                             Pre-filter                   Fine dust prefilter F7
                                                                                          Particle filter H13 and
                                                             Compact filter               granular activated carbon
                                                                                          filter







                                                                                                                     Laser Extraction













                                                                                                                     Accessories Volume extraction




















                                                                                                                     Spare filter








                                                                                                 Filtration  229
