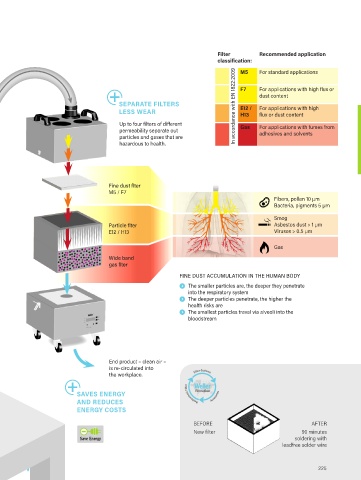

ZERO SMOG and LASERLINE
®

Filter Recommended application
classification:
fume extraction solutions M5 For standard applications

dust content
WE CARE FOR YOUR ENVIRONMENT. SEPARATE FILTERS In accordance with EN 1822:2009 F7 For applications with high flux or
LESS WEAR E12 / For applications with high
flux or dust content
H13
Up to four filters of different Gas For applications with fumes from
permeability separate out adhesives and solvents
particles and gases that are
hazardous to health.

Fine dust flter
M5 / F7
Fibers, pollen 10 μm
Bacteria, pigments 5 μm
Smog
Particle flter Asbestos dust > 1 μm
E12 / H13 Viruses > 0.5 μm

Gas
Wide band
gas flter
FINE DUST ACCUMULATION IN THE HUMAN BODY
) The smaller particles are, the deeper they penetrate
into the respiratory system
) The deeper particles penetrate, the higher the
health risks are
) The smallest particles travel via alveoli into the
bloodstream

End product – clean air –
is re-circulated into
the workplace.

SAVES ENERGY Filtration
AND REDUCES
ENERGY COSTS

BEFORE AFTER
New filter 90 minutes
soldering with
leadfree solder wire

2
Filtration 22525
