Volume fume extraction

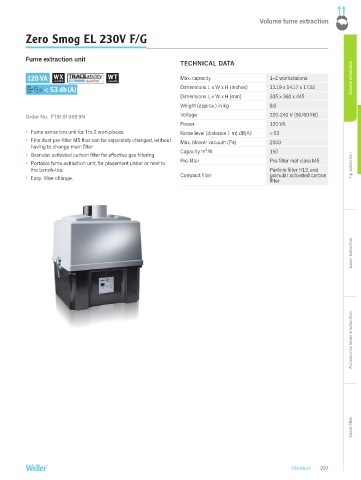

          Zero Smog EL 230V F/G



          Fume extraction unit
                                                             TECHNICAL DATA

          120 VA                                             Max. capacity                1–2 workstations           Volume extraction

          LOW                                                Dimensions L x W x H (Inches)  13.19 x 14.17 x 17.52
          SOUND   < 53 db (A)
          LEVEL
                                                             Dimensions L x W x H (mm)    335 x 360 x 445
                                                             Weight (approx.) in kg       8.6
          Order No.  FT91 01 069 9N                          Voltage                      220-240 V (50/60 Hz)
                                                             Power                        120 VA
            Ÿ Fume extraction unit for 1 to 2 workplaces.    Noise level (distance 1 m) dB(A)  < 53
            Ÿ Fine dust pre-filter M5 that can be separately changed, without   Max. blower vacuum (Pa)  2500
           having to change main filter
            Ÿ Granular activated carbon filter for effective gas filtering  Capacity m³/h  150
            Ÿ Portable fume extraction unit, for placement under or next to   Pre-filter  Pre-filter mat class M5
           the bench-top.                                                                 Particle filter H13, and   Tip Extraction
            Ÿ Easy  filter change.                           Compact filter               granular activated carbon
                                                                                          filter










                                                                                                                     Laser Extraction













                                                                                                                     Accessories Volume extraction




















                                                                                                                     Spare filter








                                                                                                 Filtration  227
