Volume fume extraction

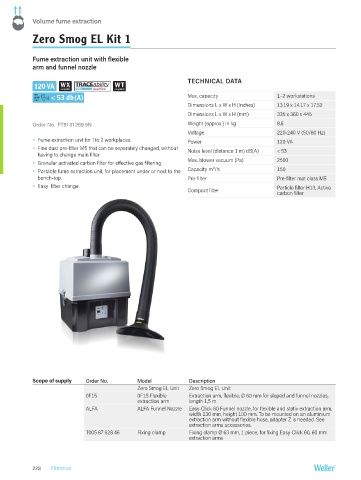

Zero Smog EL Kit 1

Fume extraction unit with flexible
arm and funnel nozzle

TECHNICAL DATA
120 VA
LOW Max. capacity 1–2 workstations
SOUND < 53 db (A)
LEVEL
Dimensions L x W x H (Inches) 13.19 x 14.17 x 17.52
Dimensions L x W x H (mm) 335 x 360 x 445
Order No. FT91 01 269 9N Weight (approx.) in kg 8.6
Voltage 220-240 V (50/60 Hz)
Ÿ Fume extraction unit for 1 to 2 workplaces. Power 120 VA
Ÿ Fine dust pre-filter M5 that can be separately changed, without Noise level (distance 1 m) dB(A) < 53
having to change main filter
Ÿ Granular activated carbon filter for effective gas filtering Max. blower vacuum (Pa) 2500
Ÿ Portable fume extraction unit, for placement under or next to the Capacity m³/h 150
bench-top. Pre-filter Pre-filter mat class M5
Ÿ Easy filter change. Particle filter H13, Active
Compact filter carbon filter

Scope of supply Order No. Model Description
Zero Smog EL Unit Zero Smog EL Unit
0F15 0F15 Flexible Extraction arm, flexible, Ø 60 mm for sloped and funnel nozzles,
extraction arm length 1,5 m
ALFA ALFA Funnel Nozzle Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm,
width 230 mm, height 100 mm. To be mounted on an aluminium
extraction arm without flexible hose, adapter Z is needed. See
extraction arms accessories.
T005 87 628 46 Fixing clamp Fixing clamp Ø 63 mm, 1 piece, for fixing Easy-Click 60, 60 mm
extraction arms

228 Filtration
