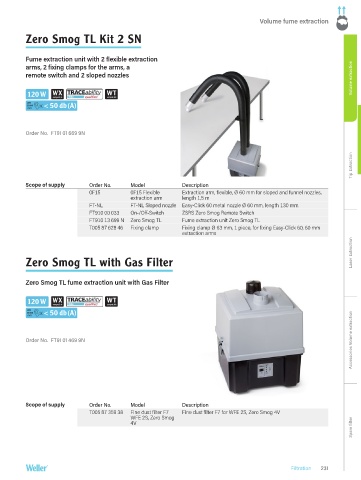

Page 231 - weller

Volume fume extraction

Zero Smog TL Kit 2 SN

Fume extraction unit with 2 flexible extraction
arms, 2 fixing clamps for the arms, a
remote switch and 2 sloped nozzles Volume extraction

120 W

LOW
SOUND < 50 db (A)
LEVEL

Order No. FT91 01 669 9N

Tip Extraction

Scope of supply Order No. Model Description
0F15 0F15 Flexible Extraction arm, flexible, Ø 60 mm for sloped and funnel nozzles,
extraction arm length 1,5 m
FT-NL FT-NL Sloped nozzle Easy-Click 60 metal nozzle Ø 60 mm, length 130 mm.
FT910 00 033 On-/Off-Switch ZSRS Zero Smog Remote Switch
FT910 13 699 N Zero Smog TL Fume extraction unit Zero Smog TL
T005 87 628 46 Fixing clamp Fixing clamp Ø 63 mm, 1 piece, for fixing Easy-Click 60, 60 mm
extraction arms
Laser Extraction

Zero Smog TL with Gas Filter

Zero Smog TL fume extraction unit with Gas Filter

120 W

LOW
Accessories Volume extraction
SOUND < 50 db (A)
LEVEL
Order No. FT91 01 469 9N

Scope of supply Order No. Model Description
T005 87 359 38 Fine dust filter F7 Fine dust filter F7 for WFE 2S, Zero Smog 4V
WFE 2S, Zero Smog
Spare filter
4V

Filtration 231
