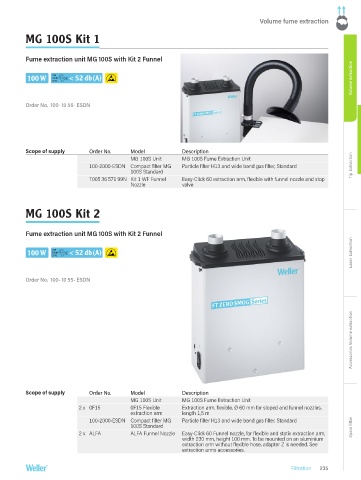

Volume fume extraction

MG 100S Kit 1

Fume extraction unit MG 100S with Kit 2 Funnel
Volume extraction

100 W LOW < 52 db (A)
SOUND
LEVEL

Order No. 100- 10 56- ESDN

Scope of supply Order No. Model Description
MG 100S Unit MG 100S Fume Extraction Unit
100-2000-ESDN Compact filter MG Particle filter H13 and wide band gas filter, Standard Tip Extraction
100S Standard
T005 36 571 99N Kit 1 WF Funnel Easy-Click 60 extraction arm, flexible with funnel nozzle and stop
Nozzle valve

MG 100S Kit 2

Fume extraction unit MG 100S with Kit 2 Funnel
Laser Extraction
100 W LOW < 52 db (A)
SOUND
LEVEL

Order No. 100- 10 55- ESDN

Accessories Volume extraction

Scope of supply Order No. Model Description
MG 100S Unit MG 100S Fume Extraction Unit
2 x 0F15 0F15 Flexible Extraction arm, flexible, Ø 60 mm for sloped and funnel nozzles,
extraction arm length 1,5 m
100-2000-ESDN Compact filter MG Particle filter H13 and wide band gas filter, Standard
100S Standard Spare filter
2 x ALFA ALFA Funnel Nozzle Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm,
width 230 mm, height 100 mm. To be mounted on an aluminium
extraction arm without flexible hose, adapter Z is needed. See
extraction arms accessories.
