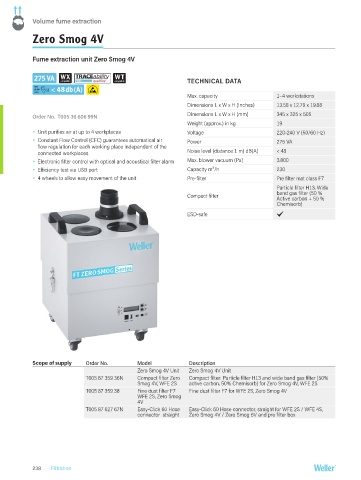

P. 238
Volume fume extraction
Zero Smog 4V
Fume extraction unit Zero Smog 4V
275 VA TECHNICAL DATA
LOW
SOUND < 48 db (A)
LEVEL
Max. capacity 1–4 workstations
Dimensions L x W x H (Inches) 13.58 x 12.79 x 19.88
Order No. T005 36 606 99N Dimensions L x W x H (mm) 345 x 325 x 505
Weight (approx.) in kg 19
Unit purifies air at up to 4 workplaces Voltage 220-240 V (50/60 Hz)
Constant Flow Control (CFC) guarantees automatical air Power 275 VA
flow regulation for each working place independent of the
connected workplaces Noise level (distance 1 m) dB(A) < 48
Electronic filter control with optical and acoustical filter alarm Max. blower vacuum (Pa) 3.800
Efficiency test via USB port Capacity m³/h 230
4 wheels to allow easy movement of the unit Pre-filter Pre filter mat class F7
Particle filter H13, Wide
Compact filter band gas filter (50 %
Active carbon + 50 %
Chemisorb)
ESD-safe .
Scope of supply Order No. Model Description
Zero Smog 4V Unit Zero Smog 4V Unit
T005 87 359 36N Compact filter Zero Compact filter: Particle filter H13 and wide band gas filter (50%
Smog 4V, WFE 2S active carbon, 50% Chemisorb) for Zero Smog 4V, WFE 2S
T005 87 359 38 Fine dust filter F7 Fine dust filter F7 for WFE 2S, Zero Smog 4V
WFE 2S, Zero Smog
4V
T005 87 627 67N Easy-Click 60 Hose Easy-Click 60 Hose connector, straight for WFE 2S / WFE 4S,
connector straight Zero Smog 4V / Zero Smog 6V and pre filter box
238 Filtration
