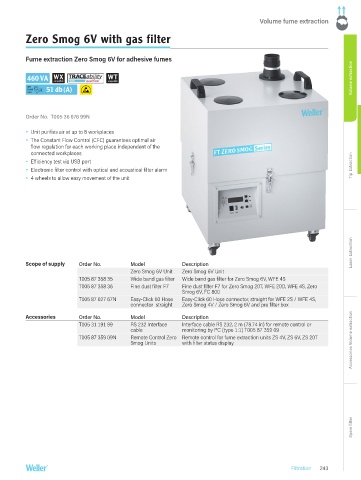

Page 243 - weller
P. 243
Volume fume extraction
Zero Smog 6V with gas filter
Fume extraction Zero Smog 6V for adhesive fumes
Volume extraction
460 VA
LOW
SOUND 51 db (A)
LEVEL
Order No. T005 36 676 99N
Unit purifies air at up to 8 workplaces
The Constant Flow Control (CFC) guarantees optimal air
flow regulation for each working place independent of the
connected workplaces
Efficiency test via USB port
Electronic filter control with optical and acoustical filter alarm Tip Extraction
4 wheels to allow easy movement of the unit
Laser Extraction
Scope of supply Order No. Model Description
Zero Smog 6V Unit Zero Smog 6V Unit
T005 87 358 35 Wide band gas filter Wide band gas filter for Zero Smog 6V, WFE 4S
T005 87 358 36 Fine dust filter F7 Fine dust filter F7 for Zero Smog 20T, WFE 20D, WFE 4S, Zero
Smog 6V, FC 800
T005 87 627 67N Easy-Click 60 Hose Easy-Click 60 Hose connector, straight for WFE 2S / WFE 4S,
connector straight Zero Smog 4V / Zero Smog 6V and pre filter box
Accessories Order No. Model Description
T005 31 191 99 RS 232 Interface Interface cable RS 232, 2 m (78.74 in) for remote control or
cable monitoring by PC (type 1:1) T005 87 359 09
T005 87 359 09N Remote Control Zero Remote control for fume extraction units ZS 4V, ZS 6V, ZS 20T
Smog Units with filter status display Accessories Volume extraction
Spare filter
Filtration 243
