Volume fume extraction | Exhaust hood

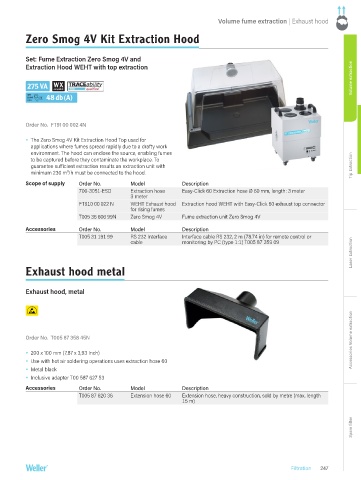

Zero Smog 4V Kit Extraction Hood

Set: Fume Extraction Zero Smog 4V and
Extraction Hood WEHT with top extraction

275 VA Volume extraction
LOW
SOUND 48 db (A)
LEVEL

Order No. FT91 00 002 4N

Ÿ The Zero Smog 4V Kit Extraction Hood Top used for
applications where fumes spread rapidly due to a drafty work
environment. The hood can enclose the source, enabling fumes
to be captured before they contaminate the workplace. To
guarantee sufficient extraction results an extraction unit with Tip Extraction
minimum 230 m³/h must be connected to the hood.
Scope of supply Order No. Model Description
700-3051-ESD Extraction hose Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter
3 meter
FT910 00 022 N WEHT Exhaust hood Extraction hood WEHT with Easy-Click 60 exhaust top connector
for rising fumes
T005 36 606 99N Zero Smog 4V Fume extraction unit Zero Smog 4V
Accessories Order No. Model Description
T005 31 191 99 RS 232 Interface Interface cable RS 232, 2 m (78.74 in) for remote control or
Laser Extraction
cable monitoring by PC (type 1:1) T005 87 359 09

Exhaust hood metal

Exhaust hood, metal

Accessories Volume extraction

Order No. T005 87 358 45N

Ÿ 200 x 100 mm (7,87 x 3,93 Inch)
Ÿ Use with hot air soldering operations uses extraction hose 60
Ÿ Metal black
Ÿ Inclusive adapter T00 587 627 53
Accessories Order No. Model Description
T005 87 620 36 Extension hose 60 Extension hose, heavy construction, sold by metre (max. length
15 m)

Spare filter

Filtration 247
