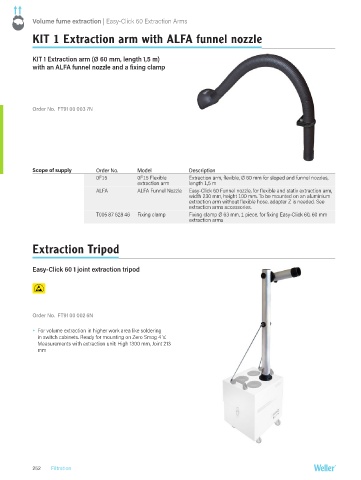

P. 252

Volume fume extraction | Easy-Click 60 Extraction Arms

            KIT 1 Extraction arm with ALFA funnel nozzle



            KIT 1 Extraction arm (Ø 60 mm, length 1,5 m)
            with an ALFA funnel nozzle and a fixing clamp







            Order No.  FT91 00 003 7N










            Scope of supply      Order No.    Model            Description
                                 0F15         0F15 Flexible    Extraction arm, flexible, Ø 60 mm for sloped and funnel nozzles,
                                              extraction arm   length 1,5 m
                                 ALFA         ALFA Funnel Nozzle  Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm,
                                                               width 230 mm, height 100 mm. To be mounted on an aluminium
                                                               extraction arm without flexible hose, adapter Z is needed. See
                                                               extraction arms accessories.
                                 T005 87 628 46  Fixing clamp  Fixing clamp Ø 63 mm, 1 piece, for fixing Easy-Click 60, 60 mm
                                                               extraction arms




            Extraction Tripod


            Easy-Click 60 1 joint extraction tripod








            Order No.  FT91 00 002 6N

               Ÿ For volume extraction in higher work area like soldering
             in switch cabinets. Ready for mounting on Zero Smog 4 V.
             Measurements with extraction unit: High 1300 mm, Joint 213
             mm























            252   Filtration
