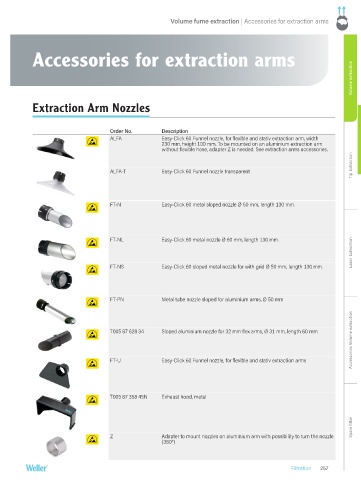

Page 257 - weller

Volume fume extraction | Accessories for extraction arms

Accessories for extraction arms
Volume extraction

Extraction Arm Nozzles

Order No. Description
ALFA Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm, width
230 mm, height 100 mm. To be mounted on an aluminium extraction arm
without flexible hose, adapter Z is needed. See extraction arms accessories.
Tip Extraction

ALFA-T Easy-Click 60 Funnel nozzle transparent

FT-N Easy-Click 60 metal sloped nozzle Ø 50 mm, length 130 mm.

FT-NL Easy-Click 60 metal nozzle Ø 60 mm, length 130 mm.
Laser Extraction

FT-NS Easy-Click 60 sloped metal nozzle for with grid Ø 50 mm, length 130 mm.

FT-PN Metal tube nozzle sloped for aluminium arms, Ø 50 mm

Accessories Volume extraction

T005 87 628 34 Sloped aluminium nozzle for 32 mm flex arms, Ø 31 mm, length 60 mm

FT-U Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arms

T005 87 358 45N Exhaust hood, metal

Spare filter

Z Adapter to mount nozzles on aluminium arm with possibility to turn the nozzle
(360°)

Filtration 257
