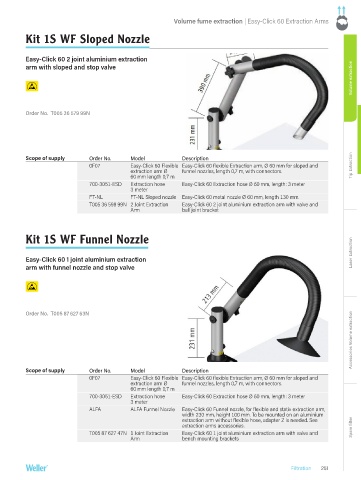

Page 251 - weller

Volume fume extraction | Easy-Click 60 Extraction Arms

Kit 1S WF Sloped Nozzle

Easy-Click 60 2 joint aluminium extraction
Volume extraction
arm with sloped and stop valve

Order No. T005 36 579 99N

Scope of supply Order No. Model Description
0F07 Easy-Click 60 Flexible Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and Tip Extraction
extraction arm Ø funnel nozzles, length 0,7 m, with connectors.
60 mm length 0,7 m
700-3051-ESD Extraction hose Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter
3 meter
FT-NL FT-NL Sloped nozzle Easy-Click 60 metal nozzle Ø 60 mm, length 130 mm.
T005 36 598 99N 2 Joint Extraction Easy-Click 60 2 joint aluminium extraction arm with valve and
Arm ball joint bracket

Kit 1S WF Funnel Nozzle

Easy-Click 60 1 joint aluminium extraction Laser Extraction
arm with funnel nozzle and stop valve

Order No. T005 87 627 63N
Accessories Volume extraction

Scope of supply Order No. Model Description
0F07 Easy-Click 60 Flexible Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and
extraction arm Ø funnel nozzles, length 0,7 m, with connectors.
60 mm length 0,7 m
700-3051-ESD Extraction hose Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter
3 meter
ALFA ALFA Funnel Nozzle Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm,
width 230 mm, height 100 mm. To be mounted on an aluminium
extraction arm without flexible hose, adapter Z is needed. See
extraction arms accessories. Spare filter
T005 87 627 47N 1 Joint Extraction Easy-Click 60 1 joint aluminium extraction arm with valve and
Arm bench mounting brackets

Filtration 251
