Volume fume extraction | Exhaust hood

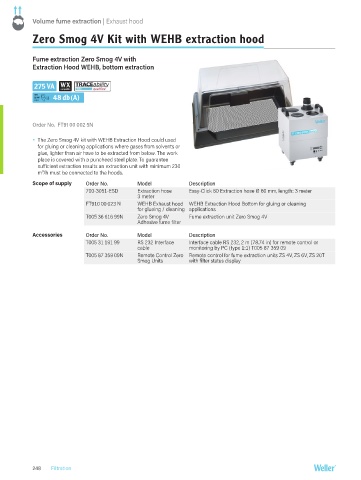

Zero Smog 4V Kit with WEHB extraction hood

Fume extraction Zero Smog 4V with
Extraction Hood WEHB, bottom extraction

275 VA
LOW
SOUND 48 db (A)
LEVEL

Order No. FT91 00 002 5N

Ÿ The Zero Smog 4V kit with WEHB Extraction Hood could used
for gluing or cleaning applications where gases from solvents or
glue, lighter than air have to be extracted from below. The work
place is covered with a puncheed steel plate. To guarantee
sufficient extraction results an extraction unit with minimum 230
m³/h must be connected to the hoods.
Scope of supply Order No. Model Description
700-3051-ESD Extraction hose Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter
3 meter
FT910 00 023 N WEHB Exhaust hood WEHB Extraction Hood Bottom for gluing or cleaning
for glueing / cleaning applications
T005 36 616 99N Zero Smog 4V Fume extraction unit Zero Smog 4V
Adhesive fume filter

Accessories Order No. Model Description
T005 31 191 99 RS 232 Interface Interface cable RS 232, 2 m (78.74 in) for remote control or
cable monitoring by PC (type 1:1) T005 87 359 09
T005 87 359 09N Remote Control Zero Remote control for fume extraction units ZS 4V, ZS 6V, ZS 20T
Smog Units with filter status display

248 Filtration
