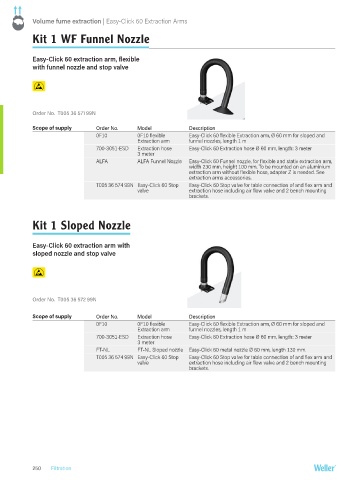

Page 250 - weller

Volume fume extraction | Easy-Click 60 Extraction Arms

Kit 1 WF Funnel Nozzle

Easy-Click 60 extraction arm, flexible
with funnel nozzle and stop valve

Order No. T005 36 571 99N

Scope of supply Order No. Model Description
0F10 0F10 flexible Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and
Extraction arm funnel nozzles, length 1 m
700-3051-ESD Extraction hose Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter
3 meter
ALFA ALFA Funnel Nozzle Easy-Click 60 Funnel nozzle, for flexible and stativ extraction arm,
width 230 mm, height 100 mm. To be mounted on an aluminium
extraction arm without flexible hose, adapter Z is needed. See
extraction arms accessories.
T005 36 574 99N Easy-Click 60 Stop Easy-Click 60 Stop valve for table connection of and flex arm and
valve extraction hose including air flow valve and 2 bench mounting
brackets.

Kit 1 Sloped Nozzle

Easy-Click 60 extraction arm with
sloped nozzle and stop valve

Order No. T005 36 572 99N

Scope of supply Order No. Model Description
0F10 0F10 flexible Easy-Click 60 flexible Extraction arm, Ø 60 mm for sloped and
Extraction arm funnel nozzles, length 1 m
700-3051-ESD Extraction hose Easy-Click 60 Extraction hose Ø 60 mm, length: 3 meter
3 meter
FT-NL FT-NL Sloped nozzle Easy-Click 60 metal nozzle Ø 60 mm, length 130 mm.
T005 36 574 99N Easy-Click 60 Stop Easy-Click 60 Stop valve for table connection of and flex arm and
valve extraction hose including air flow valve and 2 bench mounting
brackets.

250 Filtration
