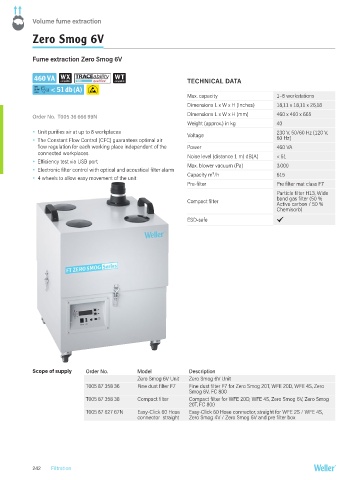

P. 242
Volume fume extraction
Zero Smog 6V
Fume extraction Zero Smog 6V
460 VA TECHNICAL DATA
LOW
SOUND < 51 db (A)
LEVEL
Max. capacity 1–8 workstations
Dimensions L x W x H (Inches) 18,11 x 18,11 x 26,18
Order No. T005 36 666 99N Dimensions L x W x H (mm) 460 x 460 x 665
Weight (approx.) in kg 40
Unit purifies air at up to 8 workplaces Voltage 230 V, 50/60 Hz (120 V,
The Constant Flow Control (CFC) guarantees optimal air 60 Hz)
flow regulation for each working place independent of the Power 460 VA
connected workplaces Noise level (distance 1 m) dB(A) < 51
Efficiency test via USB port Max. blower vacuum (Pa) 3.000
Electronic filter control with optical and acoustical filter alarm
4 wheels to allow easy movement of the unit Capacity m³/h 615
Pre-filter Pre filter mat class F7
Particle filter H13, Wide
Compact filter band gas filter (50 %
Active carbon / 50 %
Chemisorb)
ESD-safe .
Scope of supply Order No. Model Description
Zero Smog 6V Unit Zero Smog 6V Unit
T005 87 358 36 Fine dust filter F7 Fine dust filter F7 for Zero Smog 20T, WFE 20D, WFE 4S, Zero
Smog 6V, FC 800
T005 87 358 38 Compact filter Compact filter for WFE 20D, WFE 4S, Zero Smog 6V, Zero Smog
20T, FC 800
T005 87 627 67N Easy-Click 60 Hose Easy-Click 60 Hose connector, straight for WFE 2S / WFE 4S,
connector straight Zero Smog 4V / Zero Smog 6V and pre filter box
242 Filtration
