Volume fume extraction

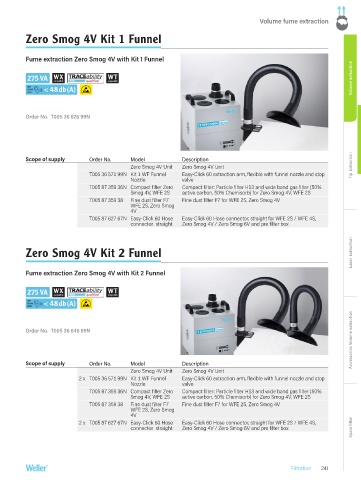

Zero Smog 4V Kit 1 Funnel

Fume extraction Zero Smog 4V with Kit 1 Funnel
Volume extraction

275 VA

LOW
SOUND < 48 db (A)
LEVEL

Order No. T005 36 626 99N

Scope of supply Order No. Model Description
Zero Smog 4V Unit Zero Smog 4V Unit Tip Extraction
T005 36 571 99N Kit 1 WF Funnel Easy-Click 60 extraction arm, flexible with funnel nozzle and stop
Nozzle valve
T005 87 359 36N Compact filter Zero Compact filter: Particle filter H13 and wide band gas filter (50%
Smog 4V, WFE 2S active carbon, 50% Chemisorb) for Zero Smog 4V, WFE 2S
T005 87 359 38 Fine dust filter F7 Fine dust filter F7 for WFE 2S, Zero Smog 4V
WFE 2S, Zero Smog
4V
T005 87 627 67N Easy-Click 60 Hose Easy-Click 60 Hose connector, straight for WFE 2S / WFE 4S,
connector straight Zero Smog 4V / Zero Smog 6V and pre filter box

Laser Extraction
Zero Smog 4V Kit 2 Funnel

Fume extraction Zero Smog 4V with Kit 2 Funnel

275 VA

LOW
SOUND < 48 db (A)
LEVEL
Accessories Volume extraction
Order No. T005 36 646 99N

Scope of supply Order No. Model Description
Zero Smog 4V Unit Zero Smog 4V Unit
2 x T005 36 571 99N Kit 1 WF Funnel Easy-Click 60 extraction arm, flexible with funnel nozzle and stop
Nozzle valve
T005 87 359 36N Compact filter Zero Compact filter: Particle filter H13 and wide band gas filter (50%
Smog 4V, WFE 2S active carbon, 50% Chemisorb) for Zero Smog 4V, WFE 2S
T005 87 359 38 Fine dust filter F7 Fine dust filter F7 for WFE 2S, Zero Smog 4V
WFE 2S, Zero Smog
4V
2 x T005 87 627 67N Easy-Click 60 Hose Easy-Click 60 Hose connector, straight for WFE 2S / WFE 4S,
connector straight Zero Smog 4V / Zero Smog 6V and pre filter box Spare filter

Filtration 241
