P. 237
Volume fume extraction
MG 140

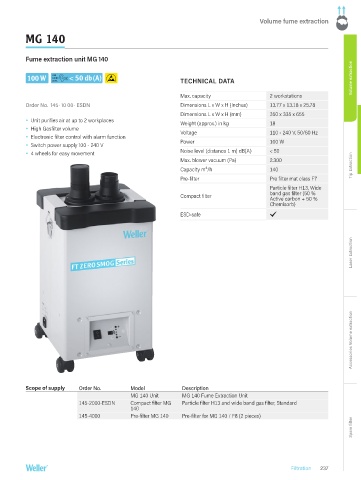

Fume extraction unit MG 140
Volume extraction
100 W LOW < 50 db (A)
SOUND
TECHNICAL DATA
LEVEL
Max. capacity 2 workstations
Order No. 145- 10 00- ESDN Dimensions L x W x H (Inches) 13.77 x 13.18 x 25.78
Dimensions L x W x H (mm) 350 x 335 x 655
Unit purifies air at up to 2 workplaces Weight (approx.) in kg 18
High Gasfilter volume Voltage 110 - 240 V, 50/60 Hz
Electronic filter control with alarm function
Switch power supply 100 - 240 V Power 100 W
4 wheels for easy movement Noise level (distance 1 m) dB(A) < 50
Max. blower vacuum (Pa) 2.300
Capacity m³/h 140 Tip Extraction
Pre-filter Pre filter mat class F7
Particle filter H13, Wide
Compact filter band gas filter (50 %
Active carbon + 50 %
Chemisorb)
ESD-safe .
Laser Extraction
Accessories Volume extraction
Scope of supply Order No. Model Description
MG 140 Unit MG 140 Fume Extraction Unit
145-2000-ESDN Compact filter MG Particle filter H13 and wide band gas filter, Standard
140
145-4000 Pre-filter MG 140 Pre-filter for MG 140 / F8 (2 pieces)
Spare filter
Filtration 237
