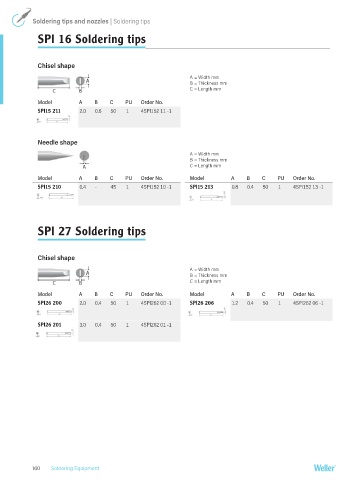

Page 160 - weller

Soldering tips and nozzles | Soldering tips

SPI 16 Soldering tips

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No.
SPI15 211 2.0 0.6 50 1 4SPI152 11 -1

Needle shape

A = Width mm
B = Thickness mm
C = Length mm

Model A B C PU Order No. Model A B C PU Order No.
SPI15 210 0.4 - 45 1 4SPI152 10 -1 SPI15 213 0.8 0.4 50 1 4SPI152 13 -1

SPI 27 Soldering tips

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm

Model A B C PU Order No. Model A B C PU Order No.
SPI26 200 2.0 0.4 50 1 4SPI262 00 -1 SPI26 206 1.2 0.4 50 1 4SPI262 06 -1

SPI26 201 3.0 0.4 50 1 4SPI262 01 -1

160 Soldering Equipment
