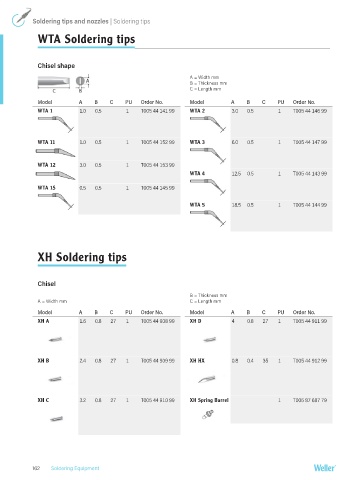

P. 162
Soldering tips and nozzles | Soldering tips
WTA Soldering tips
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
WTA 1 1.0 0.5 1 T005 44 141 99 WTA 2 3.0 0.5 1 T005 44 146 99
WTA 11 1.0 0.5 1 T005 44 152 99 WTA 3 6.0 0.5 1 T005 44 147 99
WTA 12 3.0 0.5 1 T005 44 153 99
WTA 4 12.5 0.5 1 T005 44 143 99
WTA 1S 0.5 0.5 1 T005 44 145 99
WTA 5 18.5 0.5 1 T005 44 144 99
XH Soldering tips
Chisel
B = Thickness mm
A = Width mm C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
XH A 1.6 0.8 27 1 T005 44 908 99 XH D 4 0.8 27 1 T005 44 911 99
XH B 2.4 0.8 27 1 T005 44 909 99 XH HX 0.8 0.4 35 1 T005 44 912 99
XH C 3.2 0.8 27 1 T005 44 910 99 XH Spring Barrel 1 T005 87 687 79
162 Soldering Equipment
