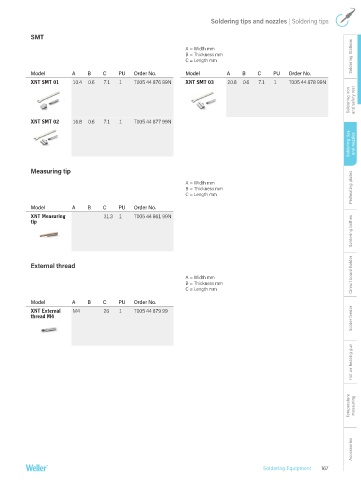

Page 167 - weller

Soldering tips and nozzles | Soldering tips

SMT
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
XNT SMT 01 10.4 0.6 7.1 1 T005 44 876 99N XNT SMT 03 20.8 0.6 7.1 1 T005 44 878 99N
Soldering iron and safety rest

XNT SMT 02 16.8 0.6 7.1 1 T005 44 877 99N
Soldering tips and nozzles

Measuring tip

A = Width mm
B = Thickness mm Preheating plates
C = Length mm

Model A B C PU Order No.
XNT Measuring 31.3 1 T005 44 861 99N
Soldering bathes
tip

External thread
A = Width mm Circuit board holder
B = Thickness mm
C = Length mm
Model A B C PU Order No.
Solder feeder
XNT External M4 26 1 T005 44 879 99
thread M4

Hot air heating gun

Temperature measuring

Accessories

Soldering Equipment 167
