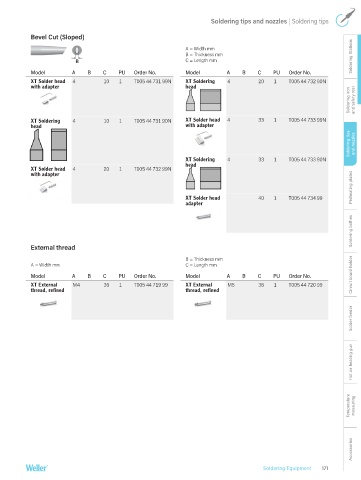

Page 171 - weller

Soldering tips and nozzles | Soldering tips

Bevel Cut (Sloped)
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
XT Solder head 4 10 1 T005 44 731 99N XT Soldering 4 20 1 T005 44 732 90N
with adapter head
Soldering iron and safety rest

XT Soldering 4 10 1 T005 44 731 90N XT Solder head 4 33 1 T005 44 733 99N
head with adapter
Soldering tips and nozzles

XT Soldering 4 33 1 T005 44 733 90N
head
XT Solder head 4 20 1 T005 44 732 99N
with adapter
Preheating plates

XT Solder head 40 1 T005 44 734 99
adapter

Soldering bathes

External thread

B = Thickness mm
A = Width mm C = Length mm
Model A B C PU Order No. Model A B C PU Order No. Circuit board holder
XT External M4 36 1 T005 44 719 99 XT External M5 36 1 T005 44 720 99
thread, refined thread, refined

Solder feeder

Hot air heating gun

Temperature measuring

Accessories

Soldering Equipment 171
