P. 173
Soldering tips and nozzles | Soldering tips

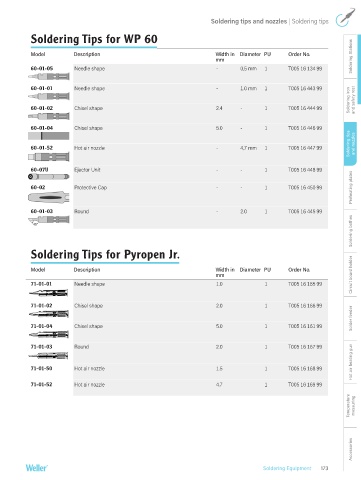

Soldering Tips for WP 60
Model Description Width in Diameter PU Order No.
mm Soldering Stations
60-01-05 Needle shape - 0,5 mm 1 T005 16 134 99
Soldering iron and safety rest
60-01-01 Needle shape - 1.0 mm 1 T005 16 443 99
60-01-02 Chisel shape 2.4 - 1 T005 16 444 99
60-01-04 Chisel shape 5.0 - 1 T005 16 446 99
Soldering tips and nozzles
60-01-52 Hot air nozzle - 4,7 mm 1 T005 16 447 99
60-07U Ejector Unit - - 1 T005 16 448 99
Preheating plates
60-02 Protective Cap - - 1 T005 16 450 99
60-01-03 Round - 2.0 1 T005 16 445 99
Soldering bathes
Soldering Tips for Pyropen Jr.
Model Description Width in Diameter PU Order No.
mm Circuit board holder
71-01-01 Needle shape 1.0 1 T005 16 165 99
71-01-02 Chisel shape 2.0 1 T005 16 166 99
Solder feeder
71-01-04 Chisel shape 5.0 1 T005 16 161 99
71-01-03 Round 2.0 1 T005 16 167 99
Hot air heating gun
71-01-50 Hot air nozzle 1.5 1 T005 16 168 99
71-01-52 Hot air nozzle 4.7 1 T005 16 169 99
Temperature measuring
Accessories
Soldering Equipment 173
