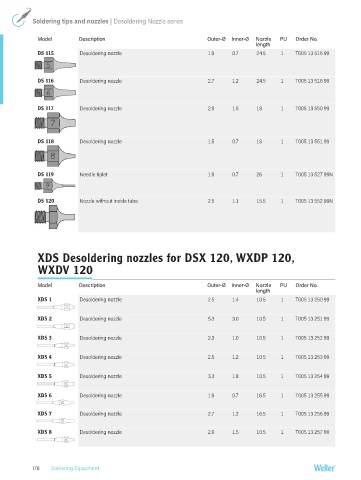

P. 178
Soldering tips and nozzles | Desoldering Nozzle series
Model Description Outer-Ø Inner-Ø Nozzle PU Order No.
length
DS 115 Desoldering nozzle 1.9 0.7 24.5 1 T005 13 515 99
DS 116 Desoldering nozzle 2.7 1.2 24.5 1 T005 13 516 99
DS 117 Desoldering nozzle 2.9 1.5 18 1 T005 13 550 99
DS 118 Desoldering nozzle 1.5 0.7 18 1 T005 13 551 99
DS 119 Needle tiplet 1.9 0.7 26 1 T005 13 527 99N
DS 120 Nozzle without inside tube 2.5 1.1 15.5 1 T005 13 552 99N
XDS Desoldering nozzles for DSX 120, WXDP 120,
WXDV 120
Model Description Outer-Ø Inner-Ø Nozzle PU Order No.
length
XDS 1 Desoldering nozzle 2.5 1.4 10.5 1 T005 13 250 99
XDS 2 Desoldering nozzle 5.3 3.0 10.5 1 T005 13 251 99
XDS 3 Desoldering nozzle 2.3 1.0 10.5 1 T005 13 252 99
XDS 4 Desoldering nozzle 2.5 1.2 10.5 1 T005 13 253 99
XDS 5 Desoldering nozzle 3.3 1.8 10.5 1 T005 13 254 99
XDS 6 Desoldering nozzle 1.9 0.7 16.5 1 T005 13 255 99
XDS 7 Desoldering nozzle 2.7 1.2 16.5 1 T005 13 256 99
XDS 8 Desoldering nozzle 2.9 1.5 10.5 1 T005 13 257 99
178 Soldering Equipment
