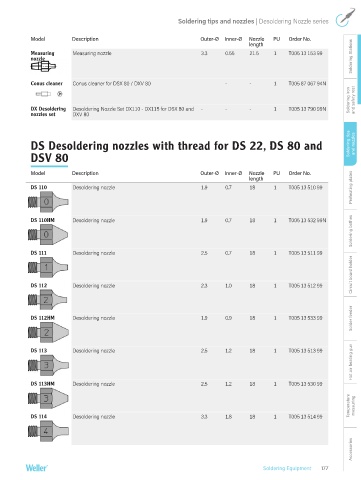

Page 177 - weller
P. 177
Soldering tips and nozzles | Desoldering Nozzle series
Model Description Outer-Ø Inner-Ø Nozzle PU Order No.
length
Measuring Measuring nozzle 3.3 0.55 21.5 1 T005 13 153 99
nozzle Soldering Stations
Conus cleaner Conus cleaner for DSX 80 / DXV 80 - - 1 T005 87 067 94N
Soldering iron and safety rest
DX Desoldering Desoldering Nozzle Set DX110 - DX115 for DSX 80 and - - - 1 T005 13 790 99N
nozzles set DXV 80
DS Desoldering nozzles with thread for DS 22, DS 80 and Soldering tips and nozzles
DSV 80
Model Description Outer-Ø Inner-Ø Nozzle PU Order No.
Preheating plates
length
DS 110 Desoldering nozzle 1.9 0.7 18 1 T005 13 510 99
Soldering bathes
DS 110HM Desoldering nozzle 1.9 0.7 18 1 T005 13 532 99N
DS 111 Desoldering nozzle 2.5 0.7 18 1 T005 13 511 99
Circuit board holder
DS 112 Desoldering nozzle 2.3 1.0 18 1 T005 13 512 99
Solder feeder
DS 112HM Desoldering nozzle 1.9 0.9 18 1 T005 13 533 99
Hot air heating gun
DS 113 Desoldering nozzle 2.5 1.2 18 1 T005 13 513 99
DS 113HM Desoldering nozzle 2.5 1.2 18 1 T005 13 530 99
Temperature measuring
DS 114 Desoldering nozzle 3.3 1.8 18 1 T005 13 514 99
Accessories
Soldering Equipment 177
