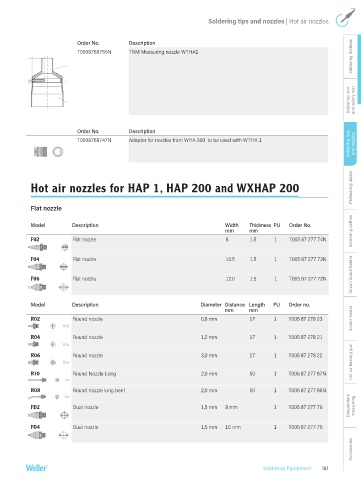

Page 181 - weller

Soldering tips and nozzles | Hot air nozzles

Order No. Description
Soldering Stations
T0058768755N TNM Measuring nozzle WTHA1

Soldering iron and safety rest

Order No. Description
Soldering tips and nozzles
T0058768747N Adapter for nozzles from WHA 900 to be used with WTHA 1

Preheating plates
Hot air nozzles for HAP 1, HAP 200 and WXHAP 200

Flat nozzle

Model Description Width Thickness PU Order No.
mm mm Soldering bathes
F02 Flat nozzle 8 1.5 1 T005 87 277 74N

F04 Flat nozzle 10.5 1.5 1 T005 87 277 73N
Circuit board holder

F06 Flat nozzle 12.0 1.5 1 T005 87 277 72N

Model Description Diameter Distance Length PU Order no.
mm mm
R02 Round nozzle 0,8 mm 17 1 T005 87 278 23 Solder feeder

R04 Round nozzle 1,2 mm 17 1 T005 87 278 21
Hot air heating gun
R06 Round nozzle 3,0 mm 17 1 T005 87 278 22

R10 Round Nozzle Long 2,0 mm 50 1 T005 87 277 87N

R08 Round nozzle long bent 2,0 mm 50 1 T005 87 277 86N
Temperature
FD2 Dual nozzle 1,5 mm 8 mm 1 T005 87 277 76 measuring

FD4 Dual nozzle 1,5 mm 10 mm 1 T005 87 277 75

Accessories

Soldering Equipment 181
