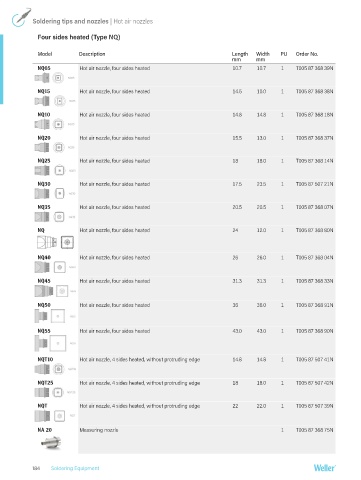

P. 184
Soldering tips and nozzles | Hot air nozzles
Four sides heated (Type NQ)
Model Description Length Width PU Order No.
mm mm
NQ05 Hot air nozzle, four sides heated 10.7 10.7 1 T005 87 368 39N
NQ15 Hot air nozzle, four sides heated 14.5 10.0 1 T005 87 368 38N
NQ10 Hot air nozzle, four sides heated 14.8 14.8 1 T005 87 368 18N
NQ20 Hot air nozzle, four sides heated 15.5 13.0 1 T005 87 368 37N
NQ25 Hot air nozzle, four sides heated 18 18.0 1 T005 87 368 14N
NQ30 Hot air nozzle, four sides heated 17.5 23.5 1 T005 87 507 21N
NQ35 Hot air nozzle, four sides heated 20.5 20.5 1 T005 87 368 07N
NQ Hot air nozzle, four sides heated 24 12.0 1 T005 87 368 80N
NQ40 Hot air nozzle, four sides heated 26 26.0 1 T005 87 368 04N
NQ45 Hot air nozzle, four sides heated 31.3 31.3 1 T005 87 368 33N
NQ50 Hot air nozzle, four sides heated 36 36.0 1 T005 87 368 91N
NQ55 Hot air nozzle, four sides heated 43.0 43.0 1 T005 87 368 90N
NQT10 Hot air nozzle, 4 sides heated, without protruding edge 14.8 14.8 1 T005 87 507 41N
NQT25 Hot air nozzle, 4 sides heated, without protruding edge 18 18.0 1 T005 87 507 42N
NQT Hot air nozzle, 4 sides heated, without protruding edge 22 22.0 1 T005 87 507 39N
NA 20 Measuring nozzle 1 T005 87 368 75N
184 Soldering Equipment
