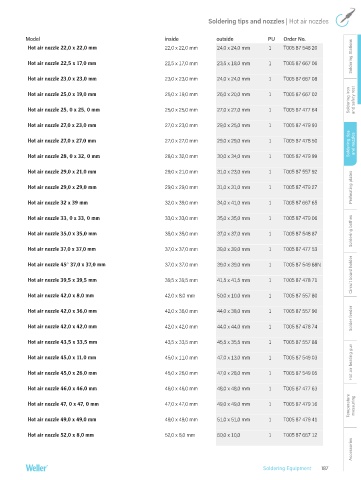

Soldering tips and nozzles | Hot air nozzles

Model inside outside PU Order No.
Soldering Stations
Hot air nozzle 22,0 x 22,0 mm 22,0 x 22,0 mm 24,0 x 24,0 mm 1 T005 87 548 20

Hot air nozzle 22,5 x 17,0 mm 22,5 x 17,0 mm 23,5 x 18,0 mm 1 T005 87 667 06

Hot air nozzle 23,0 x 23,0 mm 23,0 x 23,0 mm 24,0 x 24,0 mm 1 T005 87 667 08
Soldering iron and safety rest
Hot air nozzle 25,0 x 19,0 mm 25,0 x 19,0 mm 26,0 x 20,0 mm 1 T005 87 667 02

Hot air nozzle 25, 0 x 25, 0 mm 25,0 x 25,0 mm 27,0 x 27,0 mm 1 T005 87 477 64

Hot air nozzle 27,0 x 23,0 mm 27,0 x 23,0 mm 29,0 x 25,0 mm 1 T005 87 479 93
Soldering tips and nozzles
Hot air nozzle 27,0 x 27,0 mm 27,0 x 27,0 mm 29,0 x 29,0 mm 1 T005 87 478 50

Hot air nozzle 28, 0 x 32, 0 mm 28,0 x 32,0 mm 30,0 x 34,0 mm 1 T005 87 479 99

Hot air nozzle 29,0 x 21,0 mm 29,0 x 21,0 mm 31,0 x 23,0 mm 1 T005 87 557 92
Preheating plates
Hot air nozzle 29,0 x 29,0 mm 29,0 x 29,0 mm 31,0 x 31,0 mm 1 T005 87 479 27

Hot air nozzle 32 x 39 mm 32,0 x 39,0 mm 34,0 x 41,0 mm 1 T005 87 667 65

Soldering bathes
Hot air nozzle 33, 0 x 33, 0 mm 33,0 x 33,0 mm 35,0 x 35,0 mm 1 T005 87 479 06
Hot air nozzle 35,0 x 35,0 mm 35,0 x 35,0 mm 37,0 x 37,0 mm 1 T005 87 548 87

Hot air nozzle 37,0 x 37,0 mm 37,0 x 37,0 mm 39,0 x 39,0 mm 1 T005 87 477 53
Circuit board holder
Hot air nozzle 45° 37,0 x 37,0 mm 37,0 x 37,0 mm 39,0 x 39,0 mm 1 T005 87 549 68N

Hot air nozzle 39,5 x 39,5 mm 39,5 x 39,5 mm 41,5 x 41,5 mm 1 T005 87 478 71

Hot air nozzle 42,0 x 8,0 mm 42,0 x 8,0 mm 50,0 x 10,0 mm 1 T005 87 557 80

Solder feeder
Hot air nozzle 42,0 x 36,0 mm 42,0 x 36,0 mm 44,0 x 38,0 mm 1 T005 87 557 90
Hot air nozzle 42,0 x 42,0 mm 42,0 x 42,0 mm 44,0 x 44,0 mm 1 T005 87 478 74

Hot air nozzle 43,5 x 33,5 mm 43,5 x 33,5 mm 45,5 x 35,5 mm 1 T005 87 557 88
Hot air heating gun
Hot air nozzle 45,0 x 11,0 mm 45,0 x 11,0 mm 47,0 x 13,0 mm 1 T005 87 549 03

Hot air nozzle 45,0 x 26,0 mm 45,0 x 26,0 mm 47,0 x 28,0 mm 1 T005 87 549 05

Hot air nozzle 46,0 x 46,0 mm 46,0 x 46,0 mm 48,0 x 48,0 mm 1 T005 87 477 63
Temperature measuring
Hot air nozzle 47, 0 x 47, 0 mm 47,0 x 47,0 mm 49,0 x 49,0 mm 1 T005 87 479 16

Hot air nozzle 49,0 x 49,0 mm 49,0 x 49,0 mm 51,0 x 51,0 mm 1 T005 87 479 41

Hot air nozzle 52,0 x 8,0 mm 52,0 x 8,0 mm 60,0 x 10,0 1 T005 87 667 12
Accessories

Soldering Equipment 187
