Soldering tips and nozzles | WRK Reflowset

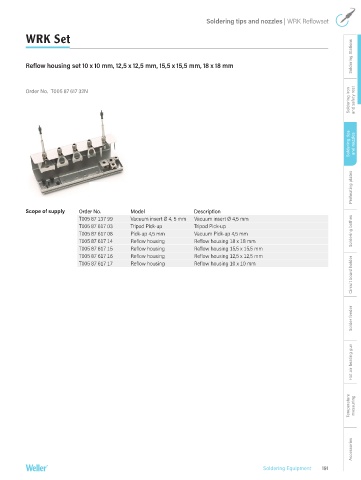

WRK Set
Soldering Stations

Reflow housing set 10 x 10 mm, 12,5 x 12,5 mm, 15,5 x 15,5 mm, 18 x 18 mm

Soldering iron and safety rest
Order No. T005 87 617 32N

Soldering tips and nozzles

Preheating plates

Scope of supply Order No. Model Description
T005 87 137 99 Vacuum insert Ø 4, 5 mm Vacuum insert Ø 4,5 mm
T005 87 617 03 Tripod Pick-up Tripod Pick-up
T005 87 617 08 Pick-up 4,5 mm Vacuum Pick-up 4,5 mm Soldering bathes
T005 87 617 14 Reflow housing Reflow housing 18 x 18 mm
T005 87 617 15 Reflow housing Reflow housing 15,5 x 15,5 mm
T005 87 617 16 Reflow housing Reflow housing 12,5 x 12,5 mm
Circuit board holder
T005 87 617 17 Reflow housing Reflow housing 10 x 10 mm
