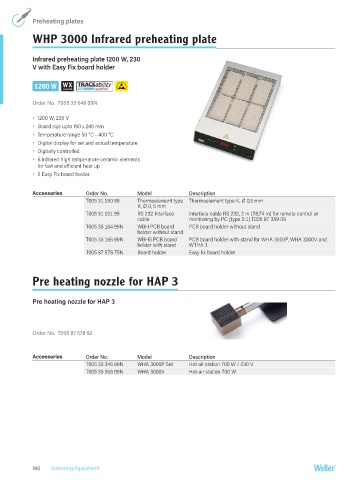

Page 196 - weller
P. 196
Preheating plates
WHP 3000 Infrared preheating plate
Infrared preheating plate 1200 W, 230
V with Easy Fix board holder
1200 W
Order No. T005 33 646 99N
1200 W, 230 V
Board size upto 190 x 245 mm
Temperature range 50 °C - 400 °C
Digital display for set and actual temperature
Digitally controlled
6 Infrared high temperature ceramic elements
for fast and efficient heat up
2 Easy Fix board holder
Accessories Order No. Model Description
T005 31 190 99 Thermoelement type Thermoelement type K, Ø 0,5 mm
K, Ø 0, 5 mm
T005 31 191 99 RS 232 Interface Interface cable RS 232, 2 m (78.74 in) for remote control or
cable monitoring by PC (type 1:1) T005 87 359 09
T005 33 164 99N WBH PCB board PCB board holder without stand
holder without stand
T005 33 165 99N WBHS PCB board PCB board holder with stand for WHA 3000P, WHA 3000V and
holder with stand WTHA 1
T005 87 578 75N Board holder Easy fix board holder
Pre heating nozzle for HAP 3
Pre heating nozzle for HAP 3
Order No. T005 87 578 92
Accessories Order No. Model Description
T005 33 346 99N WHA 3000P Set Hot air station 700 W / 230 V
T005 33 366 99N WHA 3000V Hot-air station 700 W
196 Soldering Equipment
