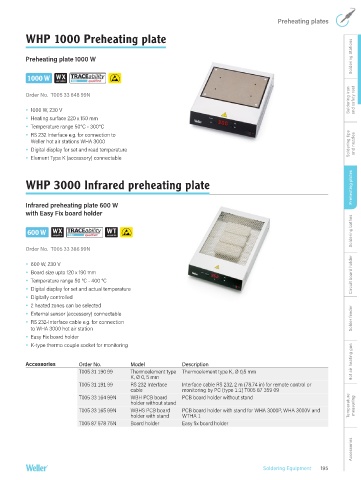

Page 195 - weller
P. 195
Preheating plates
WHP 1000 Preheating plate
Soldering Stations
Preheating plate 1000 W
1000 W
Soldering iron and safety rest
Order No. T005 33 648 99N
1000 W, 230 V
Heating surface 220 x 150 mm
Temperature range 50°C - 300°C
RS 232 Interface e.g. for connection to
Weller hot air stations WHA 3000 Soldering tips and nozzles
Digital display for set and read temperature
Element Type K (accessory) connectable
Preheating plates
WHP 3000 Infrared preheating plate
Infrared preheating plate 600 W
with Easy Fix board holder
Soldering bathes
600 W
Order No. T005 33 386 99N
600 W, 230 V
Board size upto 120 x 190 mm Circuit board holder
Temperature range 50 °C - 400 °C
Digital display for set and actual temperature
Digitally controlled
2 heated zones can be selected
External sensor (accessory) connectable
RS 232-Interface cable e.g. for connection Solder feeder
to WHA 3000 hot air station
Easy Fix board holder
K-type thermo couple socket for monitoring
Accessories Order No. Model Description Hot air heating gun
T005 31 190 99 Thermoelement type Thermoelement type K, Ø 0,5 mm
K, Ø 0, 5 mm
T005 31 191 99 RS 232 Interface Interface cable RS 232, 2 m (78.74 in) for remote control or
cable monitoring by PC (type 1:1) T005 87 359 09
T005 33 164 99N WBH PCB board PCB board holder without stand
holder without stand Temperature
T005 33 165 99N WBHS PCB board PCB board holder with stand for WHA 3000P, WHA 3000V and measuring
holder with stand WTHA 1
T005 87 578 75N Board holder Easy fix board holder
Accessories
Soldering Equipment 195
