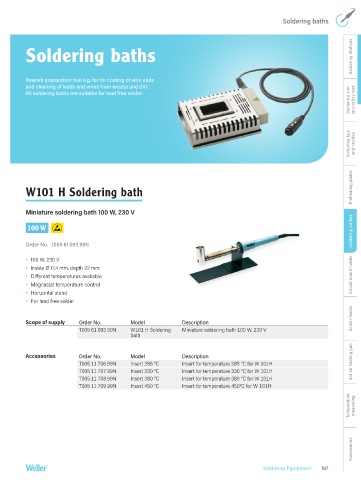

Page 197 - weller
P. 197
Soldering Equipment
Soldering baths
Soldering baths Soldering Stations
Rework preparation tool e.g. for tin coating of wire ends
and cleaning of leads and wires from excess and dirt.
Soldering iron and safety rest
All soldering baths are suitable for lead free solder.
Soldering tips and nozzles
Preheating plates
W101 H Soldering bath
Miniature soldering bath 100 W, 230 V
Soldering bathes
100 W
Order No. T005 61 093 99N
100 W, 230 V
Inside Ø 17,4 mm, depth 22 mm
Different temperatures available Circuit board holder
Magnastat temperature control
Horizontal stand
For lead free solder
Solder feeder
Scope of supply Order No. Model Description
T005 61 093 99N W101 H Soldering Miniature soldering bath 100 W, 230 V
bath
Accessories Order No. Model Description
T005 11 706 99N Insert 285 °C Insert for temperature 285 °C for W 101H Hot air heating gun
T005 11 707 99N Insert 330 °C Insert for temperature 330 °C for W 101H
T005 11 708 99N Insert 380 °C Insert for temperature 380 °C for W 101H
T005 11 709 99N Insert 450 °C Insert for temperature 450°C for W 101H
Temperature measuring
Accessories
