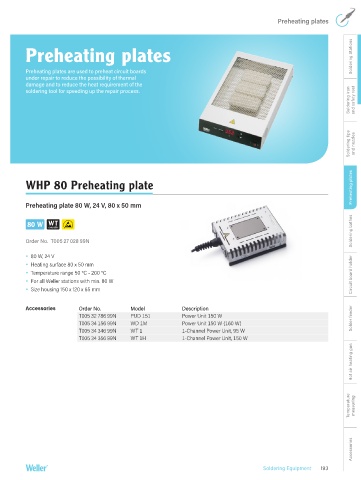

Page 193 - weller
P. 193
Soldering Equipment
Preheating plates
Preheating plates Soldering Stations
Preheating plates are used to preheat circuit boards
under repair to reduce the possibility of thermal
damage and to reduce the heat requirement of the
Soldering iron and safety rest
soldering tool for speeding up the repair process.
Soldering tips and nozzles
Preheating plates
WHP 80 Preheating plate
Preheating plate 80 W, 24 V, 80 x 50 mm
Soldering bathes
80 W
Order No. T005 27 028 99N
80 W, 24 V
Heating surface 80 x 50 mm
Temperature range 50 °C - 200 °C Circuit board holder
For all Weller stations with min. 80 W
Size housing 150 x 120 x 65 mm
Accessories Order No. Model Description
T005 32 786 99N PUD 151 Power Unit 150 W
T005 34 156 99N WD 1M Power Unit 150 W (160 W) Solder feeder
T005 34 346 99N WT 1 1-Channel Power Unit, 95 W
T005 34 356 99N WT 1H 1-Channel Power Unit, 150 W
Hot air heating gun
Temperature measuring
Accessories
