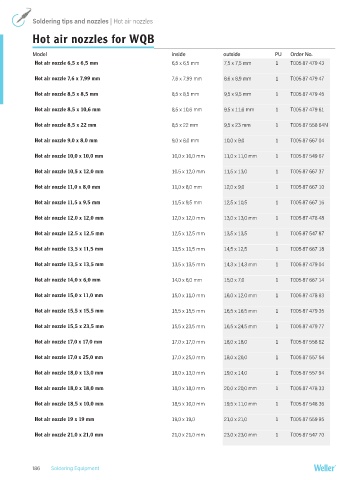

Soldering tips and nozzles | Hot air nozzles
Hot air nozzles for WQB
Model inside outside PU Order No.
Hot air nozzle 6,5 x 6,5 mm 6,5 x 6,5 mm 7,5 x 7,5 mm 1 T005 87 479 43
Hot air nozzle 7,6 x 7,99 mm 7,6 x 7,99 mm 8,6 x 8,9 mm 1 T005 87 479 47
Hot air nozzle 8,5 x 8,5 mm 8,5 x 8,5 mm 9,5 x 9,5 mm 1 T005 87 479 45
Hot air nozzle 8,5 x 10,6 mm 8,5 x 10,6 mm 9,5 x 11,6 mm 1 T005 87 479 61
Hot air nozzle 8,5 x 22 mm 8,5 x 22 mm 9,5 x 23 mm 1 T005 87 558 64N
Hot air nozzle 9,0 x 8,0 mm 9,0 x 8,0 mm 10,0 x 9,0 1 T005 87 667 04
Hot air nozzle 10,0 x 10,0 mm 10,0 x 10,0 mm 11,0 x 11,0 mm 1 T005 87 549 67
Hot air nozzle 10,5 x 12,0 mm 10.5 x 12,0 mm 11,5 x 13,0 1 T005 87 667 37
Hot air nozzle 11,0 x 8,0 mm 11,0 x 8,0 mm 12,0 x 9,0 1 T005 87 667 10
Hot air nozzle 11,5 x 9,5 mm 11,5 x 9,5 mm 12,5 x 10,5 1 T005 87 667 16
Hot air nozzle 12,0 x 12,0 mm 12,0 x 12,0 mm 13,0 x 13,0 mm 1 T005 87 478 48
Hot air nozzle 12,5 x 12,5 mm 12,5 x 12,5 mm 13,5 x 13,5 1 T005 87 547 87
Hot air nozzle 13,5 x 11,5 mm 13,5 x 11,5 mm 14,5 x 12,5 1 T005 87 667 18
Hot air nozzle 13,5 x 13,5 mm 13,5 x 13,5 mm 14,3 x 14,3 mm 1 T005 87 479 04
Hot air nozzle 14,0 x 6,0 mm 14,0 x 6,0 mm 15,0 x 7,0 1 T005 87 667 14
Hot air nozzle 15,0 x 11,0 mm 15,0 x 11,0 mm 16,0 x 12,0 mm 1 T005 87 478 93
Hot air nozzle 15,5 x 15,5 mm 15,5 x 15,5 mm 16,5 x 16,5 mm 1 T005 87 479 35
Hot air nozzle 15,5 x 23,5 mm 15,5 x 23,5 mm 16,5 x 24,5 mm 1 T005 87 479 77
Hot air nozzle 17,0 x 17,0 mm 17,0 x 17,0 mm 18,0 x 18,0 1 T005 87 558 62
Hot air nozzle 17,0 x 25,0 mm 17,0 x 25,0 mm 18,0 x 26,0 1 T005 87 557 54
Hot air nozzle 18,0 x 13,0 mm 18,0 x 13,0 mm 19,0 x 14,0 1 T005 87 557 94
Hot air nozzle 18,0 x 18,0 mm 18,0 x 18,0 mm 20,0 x 20,0 mm 1 T005 87 478 33
Hot air nozzle 18,5 x 10,0 mm 18,5 x 10,0 mm 19,5 x 11,0 mm 1 T005 87 548 36
Hot air nozzle 19 x 19 mm 19,0 x 19,0 21,0 x 21,0 1 T005 87 559 95
Hot air nozzle 21,0 x 21,0 mm 21,0 x 21,0 mm 23,0 x 23,0 mm 1 T005 87 547 70
