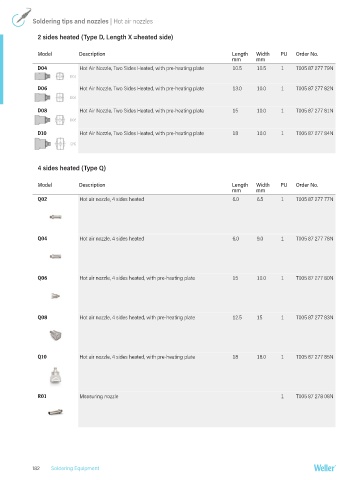

Page 182 - weller

Soldering tips and nozzles | Hot air nozzles

2 sides heated (Type D, Length X =heated side)

Model Description Length Width PU Order No.
mm mm
D04 Hot Air Nozzle, Two Sides Heated, with pre-heating plate 10.5 10.5 1 T005 87 277 79N

D06 Hot Air Nozzle, Two Sides Heated, with pre-heating plate 13.0 10.0 1 T005 87 277 82N

D08 Hot Air Nozzle, Two Sides Heated, with pre-heating plate 15 10.0 1 T005 87 277 81N

D10 Hot Air Nozzle, Two Sides Heated, with pre-heating plate 18 10.0 1 T005 87 277 84N

4 sides heated (Type Q)

Model Description Length Width PU Order No.
mm mm
Q02 Hot air nozzle, 4 sides heated 6.0 6.5 1 T005 87 277 77N

Q04 Hot air nozzle, 4 sides heated 6.0 9.0 1 T005 87 277 78N

Q06 Hot air nozzle, 4 sides heated, with pre-heating plate 15 10.0 1 T005 87 277 80N

Q08 Hot air nozzle, 4 sides heated, with pre-heating plate 12.5 15 1 T005 87 277 83N

Q10 Hot air nozzle, 4 sides heated, with pre-heating plate 18 18.0 1 T005 87 277 85N

R01 Measuring nozzle 1 T005 87 278 08N

182 Soldering Equipment
