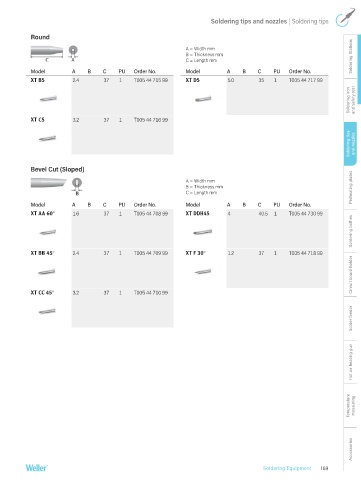

Page 169 - weller

Soldering tips and nozzles | Soldering tips

Round
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
XT BS 2.4 37 1 T005 44 715 99 XT DS 5.0 35 1 T005 44 717 99
Soldering iron and safety rest

XT CS 3.2 37 1 T005 44 716 99
Soldering tips and nozzles

Bevel Cut (Sloped)
A = Width mm
B = Thickness mm Preheating plates
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
XT AA 60° 1.6 37 1 T005 44 708 99 XT DDH45 4 40.5 1 T005 44 730 99
Soldering bathes

XT BB 45° 2.4 37 1 T005 44 709 99 XT F 30° 1.2 37 1 T005 44 718 99
Circuit board holder

XT CC 45° 3.2 37 1 T005 44 710 99

Solder feeder

Hot air heating gun

Temperature measuring

Accessories

Soldering Equipment 169
