P. 164
Soldering tips and nozzles | Soldering tips

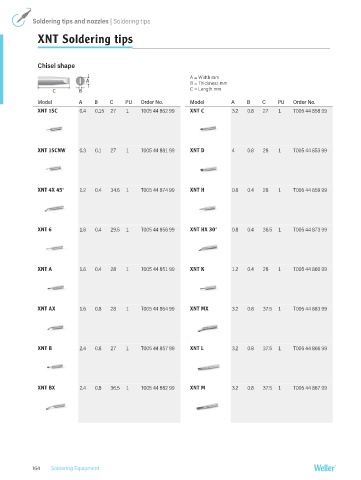

XNT Soldering tips
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
XNT 1SC 0.4 0.15 27 1 T005 44 862 99 XNT C 3.2 0.8 27 1 T005 44 858 99
XNT 1SCNW 0.3 0.1 27 1 T005 44 881 99 XNT D 4 0.8 28 1 T005 44 853 99
XNT 4X 45° 1.2 0.4 34.6 1 T005 44 874 99 XNT H 0.8 0.4 28 1 T005 44 859 99
XNT 6 1.6 0.4 29.5 1 T005 44 856 99 XNT HX 30° 0.8 0.4 36.5 1 T005 44 873 99
XNT A 1.6 0.4 28 1 T005 44 851 99 XNT K 1.2 0.4 28 1 T005 44 860 99
XNT AX 1.6 0.8 28 1 T005 44 864 99 XNT MX 3.2 0.8 37.5 1 T005 44 883 99
XNT B 2.4 0.8 27 1 T005 44 857 99 XNT L 3.2 0.8 37.5 1 T005 44 866 99
XNT BX 2.4 0.8 36.5 1 T005 44 882 99 XNT M 3.2 0.8 37.5 1 T005 44 867 99
