P. 163
Soldering tips and nozzles | Soldering tips

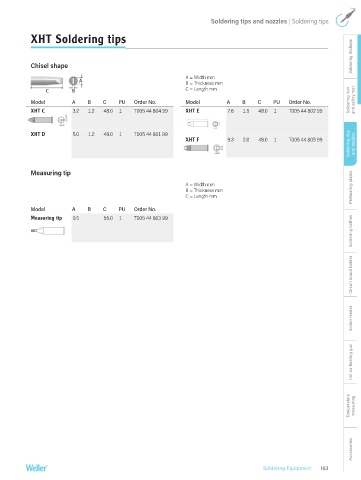

XHT Soldering tips
Soldering Stations
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No. Soldering iron and safety rest
XHT C 3.2 1.2 48.0 1 T005 44 804 99 XHT E 7.6 1.5 48.0 1 T005 44 802 99
Soldering tips and nozzles
XHT D 5.0 1.2 48.0 1 T005 44 801 99
XHT F 9.3 2.0 48.0 1 T005 44 805 99
Measuring tip
A = Width mm
B = Thickness mm Preheating plates
C = Length mm
Model A B C PU Order No.
Measuring tip 0.5 55.0 1 T005 44 803 99
Soldering bathes
Circuit board holder
Solder feeder
Hot air heating gun
Temperature measuring
Accessories
Soldering Equipment 163
