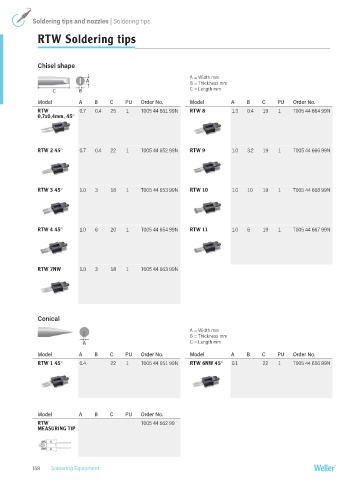

Page 158 - weller

Soldering tips and nozzles | Soldering tips

RTW Soldering tips

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
RTW 0.7 0.4 25 1 T005 44 661 99N RTW 8 1.3 0.4 19 1 T005 44 664 99N
0,7x0,4mm, 45°

RTW 2 45° 0.7 0.4 22 1 T005 44 652 99N RTW 9 1.0 3.2 19 1 T005 44 666 99N

RTW 3 45° 1.0 3 18 1 T005 44 653 99N RTW 10 1.0 10 19 1 T005 44 668 99N

RTW 4 45° 1.0 6 20 1 T005 44 654 99N RTW 11 1.0 6 19 1 T005 44 667 99N

RTW 7NW 1.0 3 18 1 T005 44 663 99N

Conical
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
RTW 1 45° 0.4 22 1 T005 44 651 99N RTW 6NW 45° 0.1 22 1 T005 44 656 99N

Model A B C PU Order No.
RTW T005 44 662 99
MEASURING TIP

158 Soldering Equipment
