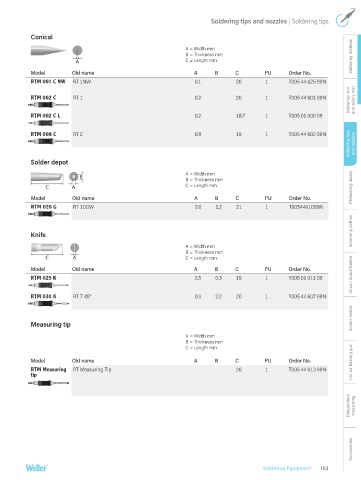

Page 153 - weller

Soldering tips and nozzles | Soldering tips

Conical
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model Old name A B C PU Order No.
RTM 001 C NW RT 1NW 0.1 20 1 T005 44 625 99N
Soldering iron and safety rest
RTM 002 C RT 1 0.2 20 1 T005 44 601 99N

RTM 002 C L 0.2 18.7 1 T005 01 000 99

Soldering tips and nozzles
RTM 008 C RT 2 0.8 19 1 T005 44 602 99N

Solder depot

A = Width mm
B = Thickness mm
C = Length mm Preheating plates
Model Old name A B C PU Order No.
RTM 020 G RT 10GW 2.0 1.2 21 1 T0054461099N
Soldering bathes

Knife

A = Width mm
B = Thickness mm
C = Length mm
Circuit board holder
Model Old name A B C PU Order No.
RTM 025 K 2.5 0.3 19 1 T005 01 011 99

RTM 030 K RT 7 45° 0.9 2.2 20 1 T005 44 607 99N

Solder feeder

Measuring tip
A = Width mm
B = Thickness mm
C = Length mm

Model Old name A B C PU Order No. Hot air heating gun
RTM Measuring RT Measuring Tip 26 1 T005 44 613 99N
tip

Temperature measuring

Accessories

Soldering Equipment 153
