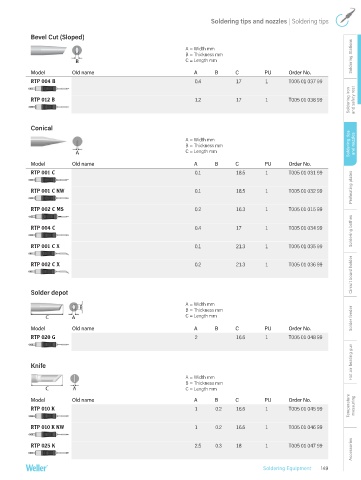

Page 149 - weller
P. 149
Soldering tips and nozzles | Soldering tips
Bevel Cut (Sloped)
A = Width mm
B = Thickness mm Soldering Stations
C = Length mm
Model Old name A B C PU Order No.
RTP 004 B 0.4 17 1 T005 01 037 99
Soldering iron and safety rest
RTP 012 B 1.2 17 1 T005 01 038 99
Conical
A = Width mm
B = Thickness mm Soldering tips and nozzles
C = Length mm
Model Old name A B C PU Order No.
RTP 001 C 0.1 18.5 1 T005 01 031 99
Preheating plates
RTP 001 C NW 0.1 18.5 1 T005 01 032 99
RTP 002 C MS 0.2 16.3 1 T005 01 015 99
Soldering bathes
RTP 004 C 0.4 17 1 T005 01 034 99
RTP 001 C X 0.1 21.3 1 T005 01 035 99
Circuit board holder
RTP 002 C X 0.2 21.3 1 T005 01 036 99
Solder depot
A = Width mm
B = Thickness mm
C = Length mm Solder feeder
Model Old name A B C PU Order No.
RTP 020 G 2 16.6 1 T005 01 048 99
Hot air heating gun
Knife
A = Width mm
B = Thickness mm
C = Length mm
Temperature measuring
Model Old name A B C PU Order No.
RTP 010 K 1 0.2 16.6 1 T005 01 045 99
RTP 010 K NW 1 0.2 16.6 1 T005 01 046 99
Accessories
RTP 025 K 2.5 0.3 18 1 T005 01 047 99
Soldering Equipment 149
