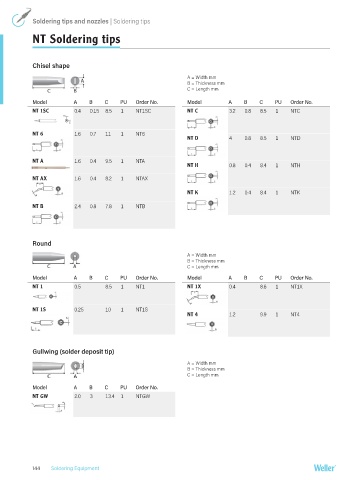

Page 144 - weller

Soldering tips and nozzles | Soldering tips

NT Soldering tips

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
NT 1SC 0.4 0.15 8.5 1 NT1SC NT C 3.2 0.8 8.5 1 NTC

NT 6 1.6 0.7 11 1 NT6
NT D 4 0.8 8.5 1 NTD

NT A 1.6 0.4 9.5 1 NTA
NT H 0.8 0.4 8.4 1 NTH

NT AX 1.6 0.4 8.2 1 NTAX

NT K 1.2 0.4 8.4 1 NTK

NT B 2.4 0.8 7.8 1 NTB

Round

A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
NT 1 0.5 8.5 1 NT1 NT 1X 0.4 8.6 1 NT1X

NT 1S 0.25 10 1 NT1S
NT 4 1.2 9.9 1 NT4

Gullwing (solder deposit tip)

A = Width mm
B = Thickness mm
C = Length mm

Model A B C PU Order No.
NT GW 2.0 3 13.4 1 NTGW

144 Soldering Equipment
