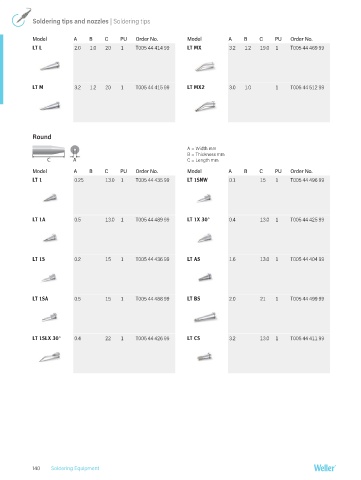

P. 140
Soldering tips and nozzles | Soldering tips
Model A B C PU Order No. Model A B C PU Order No.
LT L 2.0 1.0 20 1 T005 44 414 99 LT MX 3.2 1.2 19.0 1 T005 44 469 99
LT M 3.2 1.2 20 1 T005 44 415 99 LT MX2 3.0 1.0 1 T005 44 512 99
Round
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
LT 1 0.25 13.0 1 T005 44 435 99 LT 1SNW 0.1 15 1 T005 44 496 99
LT 1A 0.5 13.0 1 T005 44 489 99 LT 1X 30° 0.4 13.0 1 T005 44 425 99
LT 1S 0.2 15 1 T005 44 436 99 LT AS 1.6 13.0 1 T005 44 404 99
LT 1SA 0.5 15 1 T005 44 488 99 LT BS 2.0 21 1 T005 44 499 99
LT 1SLX 30° 0.4 22 1 T005 44 426 99 LT CS 3.2 13.0 1 T005 44 411 99
140 Soldering Equipment
