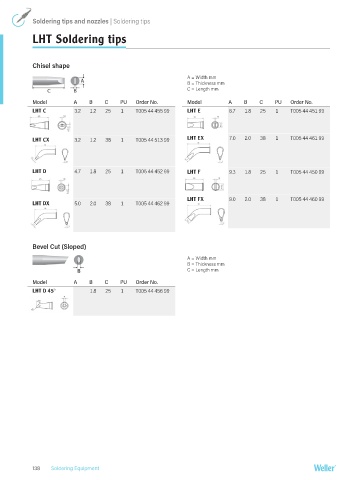

Page 138 - weller
P. 138
Soldering tips and nozzles | Soldering tips
LHT Soldering tips
Chisel shape
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
LHT C 3.2 1.2 25 1 T005 44 455 99 LHT E 6.7 1.8 25 1 T005 44 451 99
LHT CX 3.2 1.2 38 1 T005 44 513 99 LHT EX 7.0 2.0 38 1 T005 44 461 99
LHT D 4.7 1.8 25 1 T005 44 452 99 LHT F 9.3 1.8 25 1 T005 44 450 99
LHT FX 9.0 2.0 38 1 T005 44 460 99
LHT DX 5.0 2.0 38 1 T005 44 462 99
Bevel Cut (Sloped)
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No.
LHT D 45° 1.8 25 1 T005 44 456 99
138 Soldering Equipment
