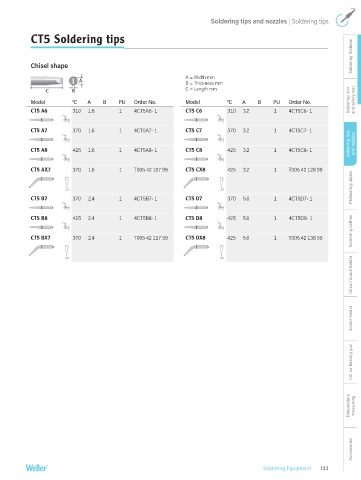

Page 133 - weller

Soldering tips and nozzles | Soldering tips

CT5 Soldering tips
Soldering Stations

Chisel shape

A = Width mm
B = Thickness mm
C = Length mm
Model °C A B PU Order No. Model °C A B PU Order No. Soldering iron and safety rest
CT5 A6 310 1.6 1 4CT5A6- 1 CT5 C6 310 3.2 1 4CT5C6- 1

CT5 A7 370 1.6 1 4CT5A7- 1 CT5 C7 370 3.2 1 4CT5C7- 1
Soldering tips and nozzles

CT5 A8 425 1.6 1 4CT5A8- 1 CT5 C8 425 3.2 1 4CT5C8- 1

CT5 AX7 370 1.6 1 T005 42 107 99 CT5 CX8 425 3.2 1 T005 42 128 99
Preheating plates

CT5 B7 370 2.4 1 4CT5B7- 1 CT5 D7 370 5.0 1 4CT5D7- 1

CT5 B8 425 2.4 1 4CT5B8- 1 CT5 D8 425 5.0 1 4CT5D8- 1
Soldering bathes

CT5 BX7 370 2.4 1 T005 42 117 99 CT5 DX8 425 5.0 1 T005 42 138 99

Circuit board holder

Solder feeder

Hot air heating gun

Temperature measuring

Accessories

Soldering Equipment 133
