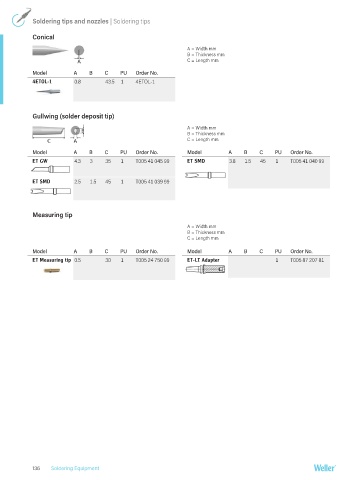

P. 136
Soldering tips and nozzles | Soldering tips
Conical
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No.
4ETOL-1 0.8 43.5 1 4ETOL-1
Gullwing (solder deposit tip)
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
ET GW 4.3 3 35 1 T005 41 045 99 ET SMD 3.8 1.5 45 1 T005 41 040 99
ET SMD 2.5 1.5 45 1 T005 41 039 99
Measuring tip
A = Width mm
B = Thickness mm
C = Length mm
Model A B C PU Order No. Model A B C PU Order No.
ET Measuring tip 0.5 30 1 T005 24 750 99 ET-LT Adapter 1 T005 87 207 81
136 Soldering Equipment
